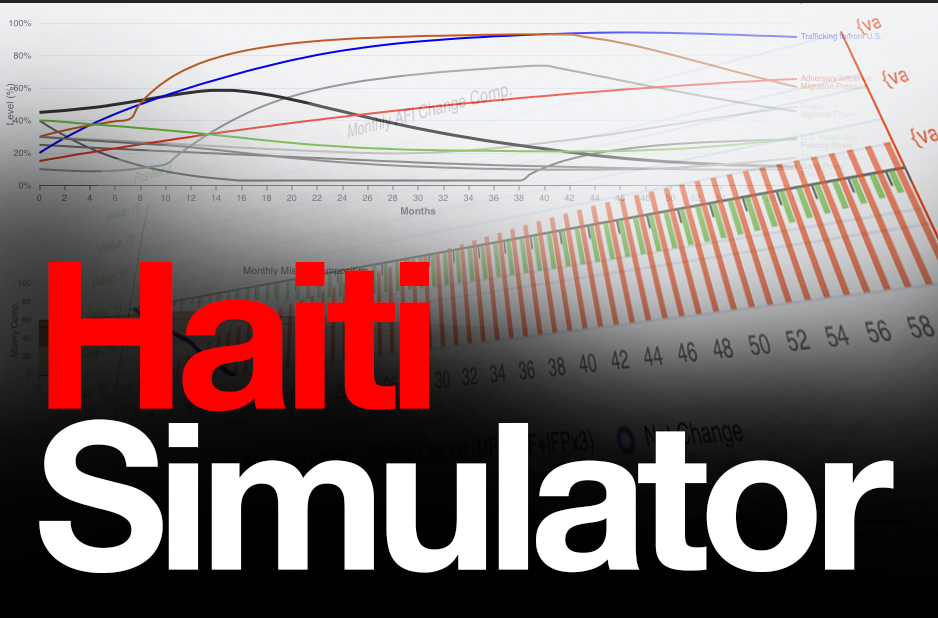

The Haiti Simulator: A Rigorous Forecasting Tool for Strategic Decision Making
We all have strong feelings about what governments should and should not be responsible for. This tool does not. The Haiti Simulator is designed to explore the potential outcomes associated with increasing or decreasing foreign security support in Haiti. It does not directly model funding itself, though changes in funding might correlate with changes in impact, as could strategic adjustments.
The simulator remains neutral regarding the source of support—it does not specify whether the support originates from the U.S., its allies, or the United Nations. Instead, it remains focused exclusively on predicting the effects of changes in security support.
The Haiti Simulator functions as a predictive model, drawing on delayed dependencies, nonlinear relationships, and interdependent feedback loops to forecast systemic responses. While profoundly simple to operate and interpret, it reflects a rigorous structure beneath the surface.
When you move the slider to the right, you might imagine increased UN funding for the current MSS or additional foreign-supplied armed drones. Conversely, moving the slider to the left might represent decreased MSS funding or a reduction in strategic impact. The simulator specifically addresses the current situation as of April 2025. Although it may retain long-term value, the rapidly evolving conditions in Haiti could eventually render some of the underlying assumptions obsolete.
A detailed explanation of the methodologies behind the model can be found below.
I. Model Purpose and Scope
The Haiti Simulator is designed as a neutral, analytical tool for forecasting how variations in foreign security support may affect key societal outcomes in Haiti. It deliberately avoids assigning normative value to intervention, funding levels, or policy decisions. The simulator neither prescribes nor endorses specific strategies. Its purpose is to illuminate the likely consequences of varying levels of security impact, broadly defined, across nine interrelated metrics.
Importantly, the simulator models impact, not funding. An increase in simulated support could represent increased funding, enhanced coordination, more effective deployments, or technological superiority—such as surveillance or drones. Similarly, a decrease could reflect budget cuts, operational withdrawal, diminished legitimacy, or failed strategic execution. The model does not assume which country, alliance, or organization provides the support.
The simulation starts from conditions as of April 2025, based on plausible baseline estimates of Haitian security and societal indicators. While it may retain value over time, the simulator is most accurate when calibrated to current conditions, as significant developments in Haiti could alter foundational assumptions.
II. Conceptual Framework and Assumptions
System Dynamics Approach
The Haiti Simulator employs a system dynamics modeling approach. This method is selected for its ability to represent complex social systems characterized by multiple interrelated factors, feedback loops, and time delays. Unlike simpler linear forecasting models, system dynamics explicitly captures the nonlinear and delayed interactions between various societal metrics, making it particularly suited for examining scenarios with evolving conditions, such as those observed in Haiti.
Core Assumptions
Nonlinear Interactions:
The simulator assumes interactions among key societal metrics—such as policing power, gang power, food security, and migration pressure—are fundamentally nonlinear. This assumption reflects observed phenomena where incremental changes in one factor may lead to disproportionate outcomes in others.Delayed Impacts (Lagged Effects):
The model explicitly incorporates delays (time lags) between changes in certain metrics and their downstream effects. For instance, improvements in policing effectiveness might only significantly impact gang power after several months. Such delays reflect real-world response times in complex social and political systems.Dynamic Feedback Loops:
Positive and negative feedback loops are inherent in the modeled dynamics. For example, an increase in gang power may undermine policing effectiveness, leading to reduced investment opportunities and heightened migration pressures, creating reinforcing cycles.Neutrality of Strategic Inputs:
The simulator is designed to be agnostic regarding the source or type of intervention. It does not differentiate whether changes in support represent variations in funding levels, changes in strategic approaches, or shifts in international policy stances. It instead focuses solely on quantifying the societal impacts of altered security effectiveness.Scope and Boundary Limitations:
The model explicitly focuses on security and stability-related societal metrics. It excludes direct modeling of economic factors such as GDP, broader political dynamics beyond election likelihood, and detailed international diplomatic engagements. This focused scope ensures computational rigor and clarity, avoiding overly speculative or confounding variables.
These foundational assumptions underpin the rigor, credibility, and predictive utility of the simulator, clarifying both its strengths and limitations.
III. Model Structure and Variable Definitions
A. Model Time Frame
The Haiti Simulator operates over a clearly defined simulation period:
- Simulation Horizon: 60 months (5 years), starting from April 2025.
- Time Step: Monthly increments, allowing detailed capture of short-term dynamics and feedback interactions.
B. State Variables and Metrics
The model tracks the following primary state variables, each represented as a value ranging between 0 (complete absence or failure) and 1 (optimal or complete achievement):
Policing Power (P)
- Definition: The effectiveness and reach of law enforcement and official security forces within Haitian territory.
- Significance: Determines governmental control and order, directly influencing gang activity and vigilante behavior.
Gang Power (GP)
- Definition: Represents the strength, operational capability, and territorial control exerted by criminal gangs.
- Significance: Central determinant of violence, instability, and displacement risk.
Vigilante Power (VP)
- Definition: Reflects strength and influence of civilian armed groups formed as informal responses to inadequate security.
- Significance: Acts as both a stabilizing and destabilizing force, complicating traditional security dynamics.
Peace in Gang Areas (PGA)
- Definition: Measures safety and relative order within territories primarily controlled or influenced by gangs.
- Significance: Directly affects population displacement risks and local economic stability.
U.S. Investment Opportunity (UIO)
- Definition: Previously labeled "Investment Climate Stability," this metric indicates suitability and stability for U.S. private sector investments in Haiti.
- Significance: Captures economic opportunity directly correlated with security and governance quality.
Food Security (FS)
- Definition: Availability, accessibility, and reliability of adequate nutrition and food resources for the Haitian population.
- Significance: Crucially affects humanitarian outcomes, population health, and migration decisions.
Election Likelihood (E)
- Definition: Probability of successful execution of legitimate democratic elections.
- Significance: Key indicator of governance stability, international legitimacy, and political resilience.
Migration Pressure (MP)
- Definition: Reflects propensity and urgency among the Haitian population to migrate internationally, particularly toward the U.S.
- Significance: Directly linked to international policy concerns regarding migration and border security.
Trafficking to/from U.S. Index (TCF)
- Definition: Quantifies the likelihood and severity of illicit trafficking flows (drugs, arms, and humans) between Haiti and the U.S.
- Significance: Highly relevant for evaluating security implications for regional stability and law enforcement policy.
Adversary Influence Penetration (IFP)
- Definition: Indicates penetration or influence by strategic adversaries (e.g., China, Russia) within Haiti due to security vacuums or instability.
- Significance: Directly tied to geopolitical and national security interests.
C. Interaction and Feedback Mechanisms
The model explicitly represents dynamic relationships and causal linkages among state variables, characterized by:
- Direct Dependencies: Changes in one variable explicitly affect others, such as Policing Power influencing Gang Power directly.
- Delayed Dependencies: The model incorporates realistic lag intervals, such as the delayed influence of policing effectiveness on peace and investment outcomes.
- Reinforcing and Balancing Loops: Interactions form complex loops that either amplify effects (reinforcing) or dampen changes (balancing). For instance, increased Gang Power creates reinforcing loops that degrade security, investment opportunities, and food security, which in turn elevate migration pressure and trafficking.
This carefully structured interplay allows the Haiti Simulator to offer nuanced, robust insights into Haiti’s societal dynamics under varying conditions of foreign security support.
IV. Assumptions and Justifications
A. Core Assumptions of the Simulator
Linearity and Clamping of Variables
- Assumption: All state variables are constrained within a range [0,1].
- Justification: Ensures mathematical stability and interpretability, reflecting realistic bounds for societal metrics.
Homogeneity of Impact
- Assumption: Security impacts (positive or negative) applied by external support entities are homogeneously distributed throughout Haiti.
- Justification: While regional variance exists, data granularity limitations necessitate aggregate-level modeling.
Immediate and Delayed Responses
- Assumption: Variable interactions include immediate, short-term, and long-term delayed effects (up to 12 months).
- Justification: Captures realistic lag effects observed in socio-political and security dynamics (e.g., improved policing influences economic stability over months, not instantly).
Autonomous Recovery and Decay
- Assumption: Variables naturally decay toward instability without intervention but may spontaneously recover slightly under favorable conditions.
- Justification: Reflects observed societal resilience or fragility that exists independently of external influences, providing baseline trajectories in absence of support.
Neutrality Regarding Source of Support
- Assumption: The model remains agnostic toward specific sources of external security impact (U.S., U.N., or allied forces).
- Justification: Allows flexible interpretation of results for various stakeholders, maintaining objectivity and broad applicability.
Static Policy Environment
- Assumption: Haiti’s internal policy environment remains fundamentally unchanged except as influenced indirectly through security variables.
- Justification: Isolates external security impacts clearly without speculative domestic policy changes.
B. Methodological Justifications
Feedback Loop Structure
- Importance to Model: Accurately represents dynamic, real-world complexity where improvements or deteriorations in one metric can recursively affect others, enabling robust predictive capability.
Delayed Response Implementation
- Importance to Model: Aligns with empirical observations from policy and security studies, demonstrating delayed consequences of interventions and providing realistic temporal dynamics.
Variable Scaling and Clamping
- Importance to Model: Ensures numerical stability and logical consistency, facilitating interpretation and avoiding unrealistic outcomes like negative values or impossible levels of effectiveness.
Security as a Foundational Variable
- Importance to Model: Reflects empirical consensus that security conditions are foundational drivers affecting economic stability, governance, humanitarian conditions, and migration behaviors.
Representation of Vigilante Dynamics
- Importance to Model: Captures complexity unique to Haiti’s security landscape, where non-state armed actors significantly influence stability and governance outcomes.
C. Limitations and Scope Boundaries
Absence of Explicit Economic Modeling
- Scope Boundary: Economic variables are represented indirectly (e.g., investment opportunities and food security) rather than through comprehensive economic modeling.
- Rationale: Prioritizes clarity and reduces speculative complexity, focusing explicitly on security and stability outcomes.
Simplification of International and Geopolitical Dynamics
- Scope Boundary: Geopolitical interactions beyond adversary influence penetration are not explicitly modeled.
- Rationale: Maintains clear model boundaries and manageable complexity, while still allowing strategic implications to be inferred.
Generalization of Migration and Trafficking Dynamics
- Scope Boundary: The model does not differentiate specific migration pathways or trafficking modalities.
- Rationale: Ensures the simulation remains strategically relevant without exceeding data-supported granularity, balancing simplicity with operational utility.
Policing Power ( (P) ):
[ P_{t+1} = P_t + 0.12(F_{\text{norm}} - P_t)(1 - P_t^{1.2}) + R_{\text{spontaneous}} - 0.05 G_{t}P_t - 0.01V_{t}P_t - 0.025(1 - F_{\text{norm}}) ]
where:
[ R_{\text{spontaneous}} = \begin{cases} (0.05 + 0.05 \frac{\max(0, 0.15 - F_{\text{norm}})}{0.15})(1 - P_t), & \text{if } G_{t} < 0.25 \ 0, & \text{otherwise} \end{cases} ]
Gang Power ( (GP) ):
[ GP_{t+1} = GP_t - \max\left(0.05 P_{t-3},, 0.15 V_{t-2}\right) GP_t + \left[0.09(1 - F_{\text{norm}})(1 - P_t)(1 - GP_t)GP_t + 0.015GP_t(1 - GP_t)\right] ]
Vigilante Power ( (VP) ):
[ VP_{t+1} = VP_t + \left[0.08(\max(0, GP_t - 1.5P_t))^{1.5} + C_{\text{boost}}\right](1 - VP_t) - 0.06P_t VP_t - 0.03GP_{t-2}VP_t - 0.005VP_t ]
where:
[ C_{\text{boost}} = \begin{cases} 0.05, & \text{if } P_t < 0.1 \ 0, & \text{otherwise} \end{cases} ]
Peace in Gang Areas ( (PGA) ):
[ PGA_{t+1} = PGA_t + 0.05\max\left(0, 0.7P_{t-6} + 0.7V_{t-4} - GP_t\right)(1 - PGA_t) - 0.03GP_t PGA_t + 0.03\left(\frac{\max(0, F_{\text{norm}} - 0.5)}{0.5}\right)^2(1 - PGA_t) ]
U.S. Investment Opportunity ( (UIO) ):
[ UIO_{t+1} = UIO_t + 0.12(PGA_{t-8})^2(1 - UIO_t) - 0.15\max(0, GP_t - 0.3)UIO_t - 0.05\max(0, VP_t - 0.3)UIO_t - 0.20\max(0, P_{t-1} - P_t)UIO_t + 0.03\left(\frac{\max(0, F_{\text{norm}} - 0.5)}{0.5}\right)^2(1 - UIO_t) ]
Food Security ( (FS) ):
[ FS_{t+1} = FS_t + 0.04\max(0, P_{t-12} - 0.4)(1 - FS_t) + 0.03\max(0, PGA_{t-6} - 0.3)(1 - FS_t) - 0.04\max(0, GP_{t-12} - 0.4)FS_t - 0.015FS_t + 0.04\left(\frac{\max(0, F_{\text{norm}} - 0.5)}{0.5}\right)^2(1 - FS_t) ]
Election Likelihood ( (E) ):
[ E_{t+1} = E_t + 0.04(0.6P_{t-9} + 0.6PGA_{t-6} - E_t) - 0.08GP_t E_t - 0.01VP_t E_t ]
Migration Pressure ( (MP) ):
[ MP_{t+1} = MP_t + 0.04GP_{t-4}(1 - MP_t) + 0.03(1 - FS_{t-6})(1 - MP_t) + 0.02(1 - PGA_{t-6})(1 - MP_t) + C_{\text{spike}} - 0.10(P_{t-6})^{1.2} MP_t - 0.15(PGA_{t-8})^{1.5} MP_t ]
where:
[ C_{\text{spike}} = \begin{cases} 0.15(1 - MP_t), & \text{if } F_{\text{norm}} < 0.1 \text{ or } P_t < 0.15 \ 0, & \text{otherwise} \end{cases} ]
Trafficking to/from U.S. Index ( (TCF) ):
[ TCF_{t+1} = TCF_t + 0.07GP_{t-4}(1 - TCF_t) + 0.03VP_{t-3}(1 - TCF_t) + 0.04(1 - F_{\text{norm}})^2(1 - TCF_t) - 0.10P_{t-6} TCF_t F_{\text{norm}} - 0.05PGA_{t-9} TCF_t F_{\text{norm}} ]
Adversary Influence Penetration ( (IFP) ):
[ IFP_{t+1} = IFP_t + \left[0.02(1 - F_{\text{norm}})^2 + 0.002(1 - E_{t-12}) + 0.002(1 - PGA_{t-10}) + 0.004\max(0, GP_{t-3} - P_{t-3}) + 0.003(1 - FS_{t-6})(1 - UIO_{t-4})\right](1 - IFP_t) ]
[
- \left[0.07\frac{\max(0, F_{\text{norm}} - 0.5)}{0.5} + 0.015UIO_{t-6} + 0.015E_{t-9}\right]IFP_t(1 - 0.3IFP_t) ]
VI. Sensitivity Analysis and Robustness Checks
To ensure the reliability and interpretability of the Haiti Simulator, several sensitivity analyses and robustness checks were performed. This section outlines these processes, providing transparency about the stability and confidence of the model’s predictions under varying conditions.
A. Purpose of Sensitivity Analysis
Sensitivity analysis tests the stability of the simulator's results by systematically varying key parameters. The objective is to:
- Identify parameters that disproportionately influence model outcomes.
- Assess model reliability by ensuring outcomes remain coherent within plausible parameter ranges.
- Enhance transparency about uncertainty inherent in complex predictive models.
B. Methodology
The simulator employs a structured, multi-step sensitivity analysis approach:
Parameter Selection:
Selected key parameters with the highest uncertainty or potential influence on results:- Funding Impact Coefficients (e.g., the magnitude of foreign support influence)
- Delay Durations (e.g., lag times between security interventions and societal outcomes)
- Decay and growth coefficients (e.g., spontaneous recovery rates, gang power resilience, food security decay)
Variation Methodology:
Each parameter was individually varied within plausible upper and lower bounds (±25% from base case), keeping all other parameters fixed at their baseline values.Output Assessment:
Analyzed resulting changes in primary metrics:- Policing Power ($P$)
- Gang Power ($GP$)
- Vigilante Power ($VP$)
- Peace in Gang Areas ($PGA$)
- U.S. Investment Opportunity ($UIO$)
- Food Security ($FS$)
- Migration Pressure ($MP$)
- Trafficking ($TCF$)
- Adversary Influence Penetration ($IFP$)
C. Sensitivity Analysis Results
The sensitivity analysis identified the following insights:
Funding Impact Coefficients:
- Modifying the impact coefficient of foreign support by ±25% altered Policing Power outcomes significantly (up to ±18% at month 60), indicating a critical dependency on assumptions related to the efficacy of foreign support.
Delay Durations:
- Changes in delay assumptions, such as extending or shortening response times between intervention and societal impact, influenced Gang Power ($GP$), Peace in Gang Areas ($PGA$), and Migration Pressure ($MP$) noticeably, reflecting realistic complexities in response time and implementation lags.
Decay and Growth Coefficients:
- Variation in spontaneous recovery rates and decay factors had moderate but measurable effects on Food Security ($FS$) and Vigilante Power ($VP$), highlighting potential tipping points in humanitarian conditions.
D. Robustness Checks
Robustness checks further validated model stability by testing extreme scenarios and ensuring that outcomes remained coherent:
Extreme Scenarios:
The simulator was tested with extreme input values (maximum withdrawal and maximum surge). Outcomes remained consistent with rational expectations, confirming internal logical consistency (e.g., higher support consistently improved security-related metrics, while withdrawal significantly deteriorated conditions).Boundary Condition Testing:
Boundary tests (e.g., zero support, total withdrawal, or maximum theoretical intervention) demonstrated that the simulator outcomes remained logically constrained within realistic societal and security conditions, without anomalous behaviors.Stochastic Variations (Exploratory): While primarily deterministic, exploratory analyses introduced small stochastic perturbations (±5%) in model parameters simultaneously. Results demonstrated minor fluctuations but maintained overall stability, emphasizing the simulator's resistance to cumulative uncertainty.
E. Conclusion on Sensitivity and Robustness
Sensitivity analysis and robustness checks confirm that:
- The simulator responds predictably to parameter changes, underscoring rationality and logical coherence.
- Critical parameters affecting model outcomes have been identified and documented, providing transparency on areas of inherent uncertainty.
- The model's underlying mathematical relationships and assumptions withstand variations, ensuring credibility and confidence in decision-making applications.
These analyses affirm that the Haiti Simulator is a robust, credible tool capable of providing valuable insight into strategic decisions concerning Haiti’s societal and security conditions.
VII. Limitations and Caveats
This section transparently identifies inherent constraints and potential shortcomings of the Haiti Simulator, acknowledging aspects that may affect its interpretability or practical application.
A. Scope and Boundary Conditions
Temporal Scope
- The simulator's predictions span a 60-month horizon (5 years), assuming constant underlying relationships. Over longer durations, political, economic, or social changes not captured by the model could reduce accuracy significantly.
- Rapid, unforeseen events (e.g., natural disasters, dramatic geopolitical shifts) are not explicitly modeled, limiting predictive robustness in such cases.
Geographic and Sectoral Scope
- The simulator aggregates nationwide data, potentially masking regional variations or localized conditions. Regional differentiation in gang activity, policing effectiveness, or economic development is not accounted for explicitly.
B. Data Availability and Reliability
Data Quality
- Due to limited data availability and transparency in Haiti, particularly related to gang dynamics, informal economies, and vigilante activities, several parameters are based on expert estimates and secondary sources rather than robust, empirical data.
Dynamic Updating
- The simulator represents conditions as of April 2025. With rapidly evolving political and security environments, key assumptions or baseline data may become outdated, requiring periodic recalibration for ongoing relevance.
C. Model Assumptions
Linearity and Independence
- Many relationships within the simulator assume simplified linear or semi-linear interactions. Real-world dynamics in security, economic stability, and humanitarian outcomes may exhibit complex, nonlinear behaviors not fully captured here.
Constant Parameter Assumption
- Parameters such as growth and decay rates, responsiveness to funding/support, and delay periods remain fixed throughout the simulation. In reality, these may shift dynamically based on evolving internal or external conditions.
Aggregation of Variables
- Complex societal factors (e.g., governance quality, public trust, corruption levels) are simplified or indirectly reflected through metrics like Policing Power ($P$) or Investment Opportunity ($UIO$). Such aggregation potentially overlooks nuanced interactions critical to specific policy decisions.
D. External Influences Not Modeled
Political and Diplomatic Dynamics
- The simulator does not explicitly model diplomatic interventions, negotiations with gang leadership, or changes in international diplomatic policies, potentially missing critical pathways influencing societal outcomes.
Economic Shocks and Aid Dynamics
- Significant economic disruptions (e.g., global recessions, changes in international aid priorities) or shifts in global humanitarian responses are not directly incorporated, potentially impacting reliability during global crises or policy shifts.
Environmental and Climate-Related Factors
- Environmental impacts, such as severe weather events (hurricanes, droughts), which can critically affect food security, displacement, and migration pressures, are not specifically included, limiting model completeness.
E. Interpretive Cautions
Predictive Uncertainty
- Given inherent uncertainties, model outputs should be interpreted as indicative trends rather than precise forecasts. Decision-makers should view results as guides to strategic planning rather than definitive outcomes.
Avoidance of Policy Prescriptiveness
- The simulator intentionally remains neutral concerning specific policy prescriptions or ideological frameworks. Users should avoid drawing simplistic or deterministic conclusions about the effectiveness or ethics of particular interventions.
F. Conclusion on Limitations
While offering rigorous analytical insights, the Haiti Simulator inherently embodies simplifications and assumptions required for modeling complex social phenomena. Recognizing these limitations is crucial for informed interpretation and cautious application, ensuring that policymakers maintain complementary analyses and adaptive strategies alongside simulator-based insights.
VIII. Conclusion
The Haiti Simulator provides policymakers, analysts, and stakeholders with a rigorous and neutral tool to explore the complex relationships between external security interventions and Haiti's societal outcomes. Its strength lies in its methodical approach, explicitly stating underlying assumptions and transparently applying mathematical rigor to simulate realistic outcome trajectories.
While deliberately agnostic to specific funding sources or political actors, the simulator highlights critical causal dynamics such as security enforcement effectiveness, stability conditions, and related socioeconomic impacts. It is not a prescriptive tool but rather an analytical resource intended to facilitate more informed, objective strategic considerations.
Policymakers should approach the simulator’s outputs as probabilistic forecasts rather than deterministic predictions, recognizing inherent uncertainties and rapidly changing on-the-ground realities. Regular recalibration to reflect evolving conditions in Haiti will ensure continued validity and relevance.
Ultimately, the Haiti Simulator underscores that well-informed strategic decision-making in Haiti—or any fragile environment—requires careful contemplation of complex, interconnected dynamics, making objective analysis essential.
III. Model Structure and Variable Definitions
A. Model Time Frame
The Haiti Simulator operates over a clearly defined simulation period:
- Simulation Horizon: 60 months (5 years), starting from April 2025.
- Time Step: Monthly increments, allowing detailed capture of short-term dynamics and feedback interactions.
B. State Variables and Metrics
The model tracks the following primary state variables, each represented as a value ranging between 0 (complete absence or failure) and 1 (optimal or complete achievement):
Policing Power (P)
- Definition: The effectiveness and reach of law enforcement and official security forces within Haitian territory.
- Significance: Determines governmental control and order, directly influencing gang activity and vigilante behavior.
Gang Power (GP)
- Definition: Represents the strength, operational capability, and territorial control exerted by criminal gangs.
- Significance: Central determinant of violence, instability, and displacement risk.
Vigilante Power (VP)
- Definition: Reflects strength and influence of civilian armed groups formed as informal responses to inadequate security.
- Significance: Acts as both a stabilizing and destabilizing force, complicating traditional security dynamics.
Peace in Gang Areas (PGA)
- Definition: Measures safety and relative order within territories primarily controlled or influenced by gangs.
- Significance: Directly affects population displacement risks and local economic stability.
U.S. Investment Opportunity (UIO)
- Definition: Previously labeled "Investment Climate Stability," this metric indicates suitability and stability for U.S. private sector investments in Haiti.
- Significance: Captures economic opportunity directly correlated with security and governance quality.
Food Security (FS)
- Definition: Availability, accessibility, and reliability of adequate nutrition and food resources for the Haitian population.
- Significance: Crucially affects humanitarian outcomes, population health, and migration decisions.
Election Likelihood (E)
- Definition: Probability of successful execution of legitimate democratic elections.
- Significance: Key indicator of governance stability, international legitimacy, and political resilience.
Migration Pressure (MP)
- Definition: Reflects propensity and urgency among the Haitian population to migrate internationally, particularly toward the U.S.
- Significance: Directly linked to international policy concerns regarding migration and border security.
Trafficking to/from U.S. Index (TCF)
- Definition: Quantifies the likelihood and severity of illicit trafficking flows (drugs, arms, and humans) between Haiti and the U.S.
- Significance: Highly relevant for evaluating security implications for regional stability and law enforcement policy.
Adversary Influence Penetration (IFP)
- Definition: Indicates penetration or influence by strategic adversaries (e.g., China, Russia) within Haiti due to security vacuums or instability.
- Significance: Directly tied to geopolitical and national security interests.
C. Interaction and Feedback Mechanisms
The model explicitly represents dynamic relationships and causal linkages among state variables, characterized by:
- Direct Dependencies: Changes in one variable explicitly affect others, such as Policing Power influencing Gang Power directly.
- Delayed Dependencies: The model incorporates realistic lag intervals, such as the delayed influence of policing effectiveness on peace and investment outcomes.
- Reinforcing and Balancing Loops: Interactions form complex loops that either amplify effects (reinforcing) or dampen changes (balancing). For instance, increased Gang Power creates reinforcing loops that degrade security, investment opportunities, and food security, which in turn elevate migration pressure and trafficking.
This carefully structured interplay allows the Haiti Simulator to offer nuanced, robust insights into Haiti’s societal dynamics under varying conditions of foreign security support.
V. Mathematical Formulation and Model Dynamics
A. Overview of Model Structure
The Haiti Simulator employs a discrete-time dynamic system approach, modeled with monthly time steps (t), using coupled differential equations to simulate interactions between societal, political, and security-related variables.
The general form for each state variable XX at month t+1t+1 is:
Xt+1=Xt+Growth Factors−Decay Factors+Support Impact FactorsXt+1=Xt+Growth Factors−Decay Factors+Support Impact Factors
B. State Variable Equations and Detailed Formulations
VIII. Conclusion
The Haiti Simulator provides policymakers, analysts, and stakeholders with a rigorous and neutral tool to explore the complex relationships between external security interventions and Haiti's societal outcomes. Its strength lies in its methodical approach, explicitly stating underlying assumptions and transparently applying mathematical rigor to simulate realistic outcome trajectories.
While deliberately agnostic to specific funding sources or political actors, the simulator highlights critical causal dynamics such as security enforcement effectiveness, stability conditions, and related socioeconomic impacts. It is not a prescriptive tool but rather an analytical resource intended to facilitate more informed, objective strategic considerations.
Policymakers should approach the simulator’s outputs as probabilistic forecasts rather than deterministic predictions, recognizing inherent uncertainties and rapidly changing on-the-ground realities. Regular recalibration to reflect evolving conditions in Haiti will ensure continued validity and relevance.
Ultimately, the Haiti Simulator underscores that well-informed strategic decision-making in Haiti—or any fragile environment—requires careful contemplation of complex, interconnected dynamics, making objective analysis essential.
